Product Overview|Kev paub tsis sib haum xeeb rau Marine Engineering

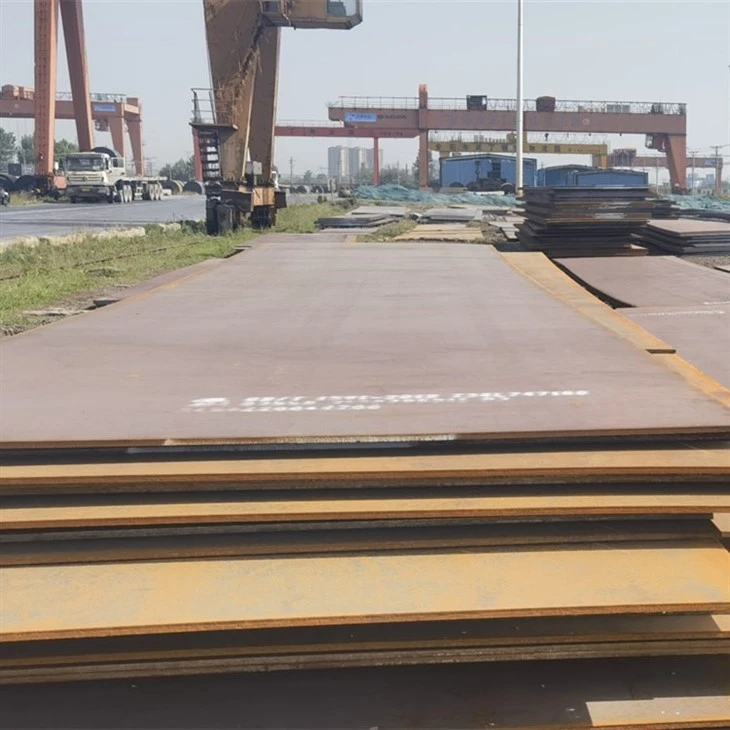

CCS Qib B shipbuilding steel phaj yog ib txwm muaj -lub zog steel ntawv pov thawj los ntawm Tuam Tshoj Classification Society (CCS). Nws yog ib qho ntawm plaub qib zoo nyob rau hauv lub zog dav dav shipbuilding steel tsev neeg (A, B, D, E), nrog rau kev ntsuam xyuas ntawm0 degree.CCS Qib B feem ntau yog siv rau hauv kev tsim cov nkoj hulls, superstructures, thiab marine engineering qauv rau cov nkoj ua haujlwm nyob rau hauv cov huab cua nyob nruab nrab.As nrog rau lwm yam kev siv zog, qhov tsawg kawg nkaus lub zog yog 235 MPa, thiab lub zog tensile yog li ntawm 400 mus rau 520 MPa.Qhov sib txawv ntawm qhov tseem ceeb ntawm A, BCS. qis- qhov kub thiab txias cuam tshuam qhov yuav tsum tau ua kom muaj zog thiab kev tswj cov tshuaj muaj pes tsawg leeg.
Quality Assurance|Tag Nrho Certified & Traceable
Ib - nres kev yuav khoom steel
Cov ntawv pov thawj:Peb muabCCS Qib B.
Traceability:Txhua lub phaj yog stamped nrog qib, kub tooj, thiab qhov ntev.
Kev tshuaj xyuas:Thib peb-kev soj ntsuam tog (SGS, BV) txais tos ntawm peb qhov chaw nres nkoj thauj khoom.
Ntsiab Specifications & Tolerances
Chemical Composition (Ladle Analysis)
| Lub ntsiab | Kev sib xyaw (%) |
|---|---|
| Cov pa roj carbon (C) | Tsawg dua lossis sib npaug li 0.21 |
| Manganese (Mn) | Ntau dua lossis sib npaug li 0.80 |
| Silicon (Si) | Tsawg dua lossis sib npaug li 0.35 |
| Phosphorus (P) | Tsawg dua lossis sib npaug li 0.035 |
| Sulfur (S) | Tsawg dua lossis sib npaug li 0.035 |
Mechanical Properties
| Khoom | Tus nqi |
|---|---|
| Yield zog (min) | 235 MPa rau |
| Tensile zog | 400-520 MPa |
| Elongation (min) | 21% – 22% |
| Impact Test Temperature | 0 degree |
| Impact Zog (Longitudinal) | Ntau dua lossis sib npaug li 27 J |
Muaj Dimensions
| Parameter | Ntau yam |
|---|---|
| Thickness | 3 hli-300mm |
| Dav | 1200-4200 hli |
| Ntev | 3000mm-18000mm |
Cov yam ntxwv ntawm kev muab khoom
| Thickness | Qhov xwm txheej |
|---|---|
| t Tsawg dua los yog sib npaug li 50mm | Ib qho twg (Raws li -rolled, Controlled-rolled, los yog TMCP) |
50mm | Normalized, Tswj -rolled, los yog TMCP |
|
Daim ntawv thov|CCS GRADE B Steel siv qhov twg?
Nkoj Superstructures
Sab saum toj decks, deckhouses, thiab superstructure Cheebtsam.
Sterns thiab Rudders
Stern thav duab thiab rudder qauv rau ntug hiav txwv nkoj.
Compartment Bulkheads
Cov kev faib sab hauv thiab tsis yog - kev faib cov txheej txheem tseem ceeb.
Offshore Engineering
General structural applications nyob rau hauv marine ib puag ncig.
CCS Qib A, B, D, E Sib piv
| Feature | Qib A | Qib B | Qib D | Qib E |
|---|---|---|---|---|
| Yield zog (min) | 235 MPa rau | 235 MPa rau | 235 MPa rau | 235 MPa rau |
| Tensile zog | 400-520 MPa | 400-520 MPa | 400-520 MPa | 400-520 MPa |
| Elongation (min) | 22% | 22% | 22% | 22% |
| Impact Test Temperature | +20 degree | 0 degree | -20 degree | -40 degree |
| Impact Zog (Longitudinal) | - | 27 J | 27 J | 27 J |
| Cov pa roj carbon (C) Max | 0.21% | 0.21% | 0.21% | 0.18% |
| Manganese (Mn) Min | Ntau tshaj los yog sib npaug rau 0.50 | Ntau dua lossis sib npaug li 0.80 | Ntau dua lossis sib npaug li 0.60 | Ntau dua lossis sib npaug li 0.70 |
| Silicon (Si) Max | 0.50% | 0.35% | 0.35% | 0.35% |
| Deoxidation | Txhua txoj kev | Txhua txoj kev | Tua, nplua -grained, Al kho | Tua, nplua -grained, Al kho |
| Qhov xwm txheej (t Tsawg dua lossis sib npaug li 50mm) | Ib qho | Ib qho | Ib qho | Normalized los yog TMCP |
| Condition (t>50mm) | Normalized / CR / TM | Normalized / CR / TM | Normalized / CR / TM | Normalized los yog TMCP |
Phau Ntawv Qhia Qib
Qib A: Cov khoom siv dav dav, tsis yog - thaj chaw tseem ceeb. Kev sim cuam tshuam tsis tas yuav tsum tau (kuaj ntawm +20℃).
Qib B: Cov nkoj loj hauv ntug hiav txwv, cov neeg nqa khoom loj, thiab kev ua haujlwm huab cua nruab nrab uas cuam tshuam qhov hnyav ntawm 0℃txaus. Yuav tsum muaj cov ntsiab lus ntawm manganese ntau dua (Ntau dua lossis sib npaug li 0.80%) dua qib A thiab D rau kev txhim kho lub zog.
Qib D: Dej hiav txwv- mus rau cov nkoj ua haujlwm hauv dej txias mus rau -20℃. Tua thiab nplua-grained steel nrog aluminium kho.
Qib E: Arctic thiab polar cheeb tsam cov hlab ntsha nrog -40℃qhov yuav tsum tau muaj kev cuam tshuam thiab kev tswj nruj tshaj plaws.
Muaj Kev Ntsuas thiab Kev Pabcuam
Kev kuaj ultrasonic (UT)Qauv: ASTM A435, A577, A578.
Z-kev taw qhia kev kuaj: Z15, Z25, Z35.
Kev sim cuam tshuam: Charpy V-notch ntawm 0℃.
Thib peb-Kev soj ntsuam tog: SGS, TUV, lossis lwm tus neeg soj ntsuam ywj pheej.
Mill Test CertificateEN 10204 Hom 3.1 lossis 3.2.
Kev kho saum npoo: Txhaj tshuaj tua blasting thiab pleev xim muaj raws li qhov kev thov.
Dimensions thiab Ntim
| Parameter | Paub meej |
|---|---|
| Thickness | 3 hli-300mm |
| Dav | 1200-4200 hli |
| Ntev | 3000mm-18000mm |
| Ntim | Txheem export seaworthy packing los yog raws li tus neeg yuav tsum tau muaj |
| Lub sij hawm xa tuaj | 7 hnub rau cov khoom lag luam; 30-50 hnub rau kev txiav txim ntau lawm |
| Chaw thau khoom Ports | Shanghai, Tianjin, Qingdao |
vim li cas ho xaiv peb?
Tshuag Muaj:Peb khaws 5, 000+ tons ntawmAH36 nkoj phajnyob rau hauv qhov ntau thiab tsawg (6m, 9m, 12m) npaj rau kev xa tawm tam sim.
Kev cai txiav:Peb muab kev txiav profile, beveling, thiab kev pabcuam kom txuag koj lub sijhawm tsim.
Fast Logistics:Kev xa khoom zoo los ntawm kev tawg ntau lossis ntim rau cov chaw nres nkoj loj thoob ntiaj teb (Rotterdam, Houston, Singapore, Dubai).
Competitive Nqe:Direct mill kev koom tes txhais tau tias tsis muaj cov neeg nruab nrab markups.
Tau txais cov lus hais hauv 24 teev
ib - nres kev daws teeb meem
pab neeg tshaj lij
siab zoo
peb cov neeg koom tes
Peb ntseeg los ntawm
Kev ntsuas tus neeg siv
Mr. Chen Wei
Singapore · Loj Shipbuilding thiab Kho Pab Pawg
Nwg Nguyen Thi Hong
Haiphong · Shipbuilding Group of Vietnam
Mr. Rajesh Kumar
Kochi, India · Ship Repair Yard
FAQ
01.Dab tsi yog qhov txawv ntawm CCS Qib A thiab Qib B shipbuilding steel?
Qib B yuav tsum muaj kev ntsuam xyuas qhov cuam tshuam ntawm 0℃nrog qhov tsawg kawg ntawm 27 Joules, thaum Qib A tsis muaj qhov yuav tsum tau muaj kev cuam tshuam (tsuas yog xav tau ntawm +20℃). Qib B kuj tseem muaj cov ntsiab lus ntawm manganese tsawg dua (0.80% vs 0.50%) thiab cov ntsiab lus silicon qis dua (0.35% vs 0.50%). Qib B yog qhov zoo dua rau cov qauv tsim kom ntseeg tau tias muaj kev cuam tshuam toughness ntawm nruab nrab kub.
02.Puas yuav tsum tau preheating rau vuam CCS Qib B daim hlau?
03.Kuv yuav xaiv qhov kev kho cua sov dab tsi?
t Tsawg dua los yog sib npaug li 50mm: Raws li -rolled (AR) lossis tswj-rolled (CR) yog haum rau feem ntau cov ntawv thov.
t > 50mm: Normalized (N) los yog TMCP yog yuav tsum tau los ntawm kev faib cov cai los xyuas kom meej txhua yam khoom zoo ib yam los ntawm tag nrho cov thickness.
04.CCS Qib B puas tuaj yeem siv rau dej hiav txwv- mus rau nkoj?
Yog, tab sis nrog kev txwv. CCS Qib B yog qhov cuam tshuam los ntawm 0 degree, ua rau nws tsim nyog rau cov nkoj ua haujlwm hauv cov dej kub thiab dej hiav txwv. Rau cov nkoj taug kev cov dej hiav txwv txias uas qhov kub poob qis dua 0 degree, CCS Qib D (-20 degree) lossis Qib E (-40 degree) yuav yog qhov kev xaiv tsim nyog.
