Product Overview|Kev paub tsis sib haum xeeb rau Marine Engineering
Trusted los ntawm shipyards thoob ntiaj teb rau kev tsim lub hull, offshore rigs, thiab nkoj retrofitting.
Kev taw qhia cov kev xav tau ntawm kev tsim nkoj niaj hnub xav tau cov hlau uas muajsiab tensile zog, superior weldability, thiabtshwj xeeb qis-kub toughness.
PebABS AH36 Shipbuilding Steel Phajyog lub siab -lub zog, kub- dov marine qib steel tshwj xeeb tsim los rau kev tsim kho dej hiav txwv- mus rau nkoj, offshore drilling rigs, thiab cov khoom siv hauv hiav txwv hnyav. Raws li tag nrho -kab xa khoom ntawm AH36, DH36, thiab EH36 daim hlau, peb xyuas kom meej tias txhua daim ntawv ua tau raws li cov qauv nruj ntawm American Bureau of Shipping (ABS) thiab lwm lub koom haum thoob ntiaj teb kev faib tawm.
Vim li cas thiaj xaiv peb AH36?Nrog rau qhov tsawg kawg nkaus tawm lub zog ntawm 355 MPa, peb AH36 steel phaj muab cov qauv kev ncaj ncees uas yuav tsum tau rau cov hulls raug rau hnyav hiav txwv ib puag ncig thaum tswj cov ductility xav tau rau txoj kev fabrication.
Kev Pov Hwm Zoo|Tag Nrho Certified & Traceable
Ib - nres kev yuav khoom steel
Cov ntawv pov thawj:Peb muabABS AH36, CCS AH36, LR AH 36, DNV-GL AH36, thiabBV AW 36.

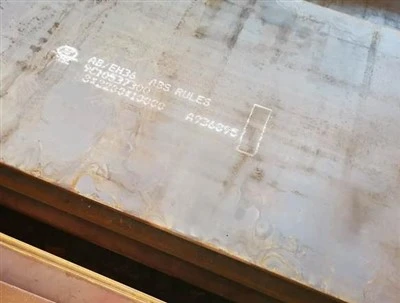

Traceability:Txhua lub phaj yog stamped nrog qib, kub tooj, thiab qhov ntev.
Kev tshuaj xyuas:Thib peb-kev soj ntsuam tog (SGS, BV) txais tos ntawm peb qhov chaw nres nkoj thauj khoom.
Ntsiab Specifications & Tolerances
| Parameter | Paub meej / Ntau |
|---|---|
| Txuj | ASTM A131 / ABS (American Bureau of Shipping), CCS, LR, BV, DNV |
| Qib | AW 36, DH36, EH36, AH32 |
| Thickness | 4mm - 260mm (Kev cai thicknesses muaj: 8mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm) |
| Dav | 1,500mm - 4,500mm |
| Ntev | 6,000mm - 18,000mm (los yog raws li tus neeg yuav tsum tau muaj) |
| Cov txheej txheem | Kub Rolled / Normalized / TMCP (Thermo Mechanical Control Process) |
| Nto | Liab qab, Roj Coated, los yog Blasted & Primed (Khw Primer) |
| Kev Xa Khoom | Raws li -rolled, Normalized, Quenched + Tempered |
Mechanical Properties & Chemical Composition|Ua rau Kev Nyuaj Siab Siab
| Element | C | Si | Mn | P | S | Ni | Cr | Mo | Nb |
|---|---|---|---|---|---|---|---|---|---|
| Max % | Tsawg dua lossis sib npaug li 0.18 | Tsawg dua los yog sib npaug li 0.50 | 0.90–1.60 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua los yog sib npaug li 0.40 | Tsawg dua los yog sib npaug li 0.20 | Tsawg dua los yog sib npaug li 0.08 | 0.02–0.05 |
Mechanical Requirements
| Khoom | Tus nqi (AH36 Standard) |
|---|---|
| Yield zog (Reh) | Ntau dua lossis sib npaug rau 355 MPa (51,000 psi) |
| Tensile zog (Rm) | 490 - 620 MPa ({2}} ksi) |
| Elongation | Ntau dua lossis sib npaug li 21% (hauv 5x txoj kab uas hla) |
| Impact Test (Charpy V-notch) | 34J min @ 0℃(Longitudinal) - ua kom tawv tawv hauv cov dej txias |
Daim ntawv thov|AH36 Steel siv qhov twg?
Nkoj Hulls
Main hull tsim, keels, thiab bilge strakes.
Offshore Platforms
Jack-up rigs, semi-submersibles, thiab FPSO topside modules.
Vessel Components
Cargo tuav, hatch npog, bulk carriers, thiab tanker decks.
Kho & Retrofit
Hloov cov hnav- tawm ntawm cov nkoj uas twb muaj lawm.
vim li cas ho xaiv peb?

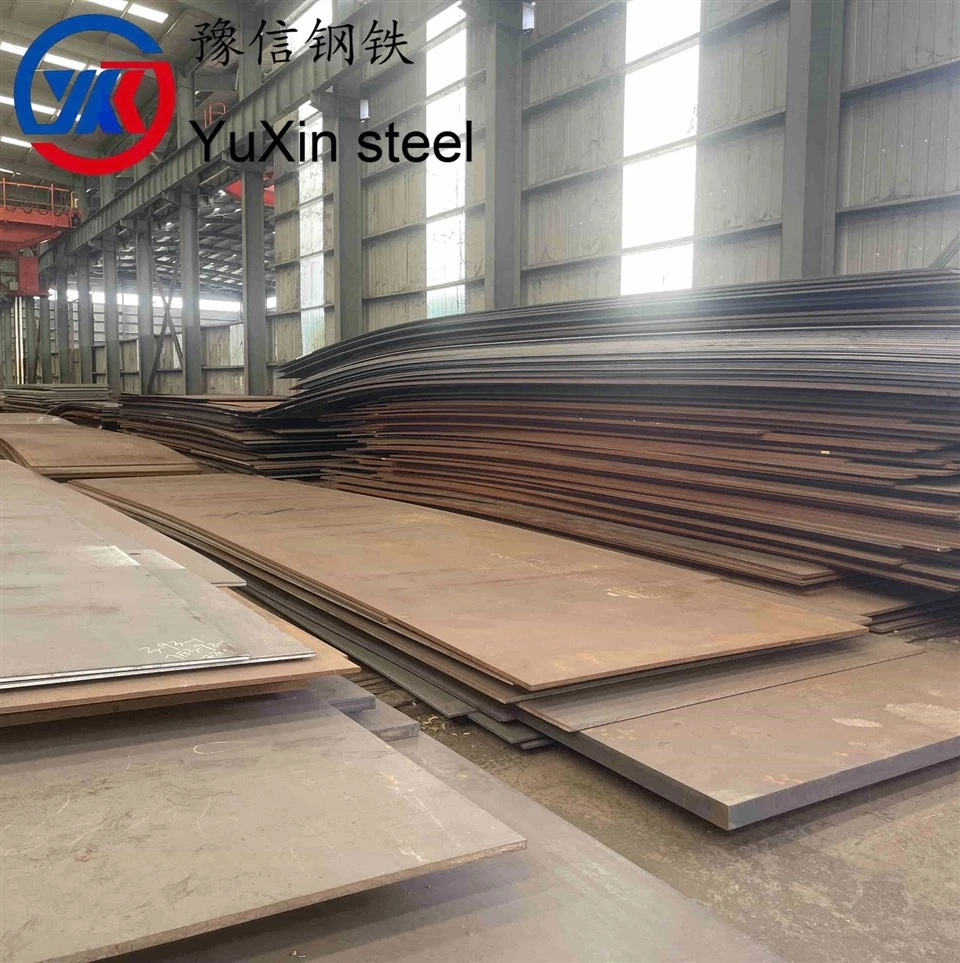

Tshuag Muaj:Peb khaws 5, 000+ tons ntawmAH36 nkoj phajnyob rau hauv qhov ntau thiab tsawg (6m, 9m, 12m) npaj rau kev xa tawm tam sim.
Kev cai txiav:Peb muab profile txiav, beveling, thiab cov kev pab cuam kom txuag koj lub sij hawm fabrication.
Fast Logistics:Kev xa khoom zoo los ntawm kev tawg lossis ntim rau cov chaw nres nkoj loj thoob ntiaj teb (Rotterdam, Houston, Singapore, Dubai).
Competitive Nqe:Direct mill kev koom tes txhais tau tias tsis muaj cov neeg nruab nrab markups.
5, 000+ tons hauv Tshuag|7-15 hnub ceev tus me nyuam|Daim ntawv pov thawj tag nrho
Tau txais cov lus hais hauv 24 teev
ib - nres kev daws teeb meem
pab neeg tshaj lij
siab zoo
peb cov neeg koom tes
Peb ntseeg los ntawm
Kev ntsuas tus neeg siv
Mr. Chen Wei
Singapore · Loj Shipbuilding thiab Kho Pab Pawg
Nwg Nguyen Thi Hong
Haiphong · Shipbuilding Group of Vietnam
Mr. Rajesh Kumar
Kochi, India · Ship Repair Yard
FAQ
01.Dab tsi yog qhov txawv ntawm AH36 thiab DH36 shipbuilding steel?
AH36 thiab DH36 muaj tib yamYam tsawg kawg nkaus lub zog (355 MPa)thiab tensile ntau yam. Qhov txawv tseem ceeb yogCharpy V-qhov kub thiab txias:
AW 36kuaj ntawm0 degree( haum rau kev tsim kho lub dav hlau).
DH 36kuaj ntawm-20 degree(pom zoo rau cov dej hiav txwv txias dua los yog cov lawj tawm).
Peb muab ob qib nrog tag nrho cov ntawv pov thawj hauv zej zog (ABS, LR, DNV, CCS, BV).
02.Koj puas tuaj yeem muab cov khoom me me (piv txwv li, 5-10 daim hlau) rau kev kho cov haujlwm?
03.Yuav ua li cas koj thiaj paub tseeb tias cov hlau yog tiag tiag ABS ntawv pov thawj?
04.Dab tsi yog koj lub sij hawm txhuas txhuas rau AH36 steel phaj?
Tshuag loj(4-40mm, txheem 2.5m × 12m):7-15 hnubtom qab tso nyiaj.
Kev cai thickness / dav(eg, 50mm +):20-35 hnub(mill dov + normalization).
Hiav txwv freight lub sij hawm nyob ntawm koj qhov chaw nres nkoj - peb muab CIF quotes rau Rotterdam, Houston, Singapore, Dubai, thiab loj Asian hubs.
