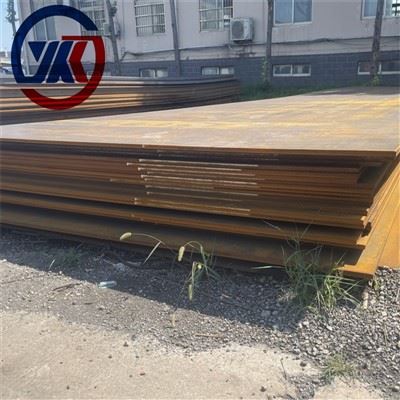

ABS AH36 Shipbuilding Steel Phaj - Siab -Lub zog Marine Steel rau Vessel Siv
ABS AH36 txhais tau tias yog qib siab dua - qib steel nyob rau hauv ABS Cov Cai rau Kev Tsim Nkoj. Lub npe "A" qhia tias nws haum rau siv ntawm32℃F (0 degree)cuam tshuam qhov ntsuas kub, thaum "H36" txhais tau tias aYam tsawg kawg nkaus lub zog ntawm 51,000 psi (355 MPa). Qib no yog ib feem ntawm 36-series tsev neeg muaj zog dua, uas kuj suav nrogDH 36, EH 36, thiabFH 36- txhua qhov txawv los ntawm lawv cov khoom muaj zog toughness ntawm cov kub qis dua.
Ntsiab nta
Daim ntawv pov thawj: Muaj ntawv pov thawj los ntawm American Bureau of Shipping (ABS) - tag nrho cov ntaub ntawv muab.
Yield zog: 51 ksi (355 MPa) yam tsawg kawg nkaus - haum rau siab - kev siv cov qauv kev ntxhov siab.
Tensile zog71 - 90 ksi (490 - 620 MPa).
Elongation: 22% yam tsawg kawg nkaus - xyuas kom tsim nyog tsim nyog rau fabrication.
Impact Test Temperature: 32℃F (0 degree) – Charpy V-notch toughness verified.
Weldability: Zoo heev nrog qis carbon sib npaug (CEV Tsawg dua lossis sib npaug ntawm 0.38 rau thicknesses txog 2 ").
Kev Xa Khoom: Muaj nyob rau hauv kev tswj -rolled (CR), normalized (N), los yog TMCP tej yam kev mob.
Vim li cas AH36 dhau qhov qub - Qib Siab?
Ib - nres kev yuav khoom steel
Qhov hnyav txo- cov ntawv nyias nyias tuaj yeem siv yam tsis muaj kev cuam tshuam txog kev ncaj ncees.
Muaj peev xwm thauj khoom- txo lub cev hnyav tso cai ntau dua payload.
Tsim yooj- enables ntau ambition nkoj tsim nrog complex load paths.
Ntsiab Specifications & Tolerances
Mechanical Properties
| Khoom | Tus nqi |
|---|---|
| Yield zog (min) | 51 ksi (355 MPa) |
| Tensile zog | 71 - 90 ksi (490 - 620 MPa) |
| Elongation A5 (min) | 22% |
| Impact Test Temperature | 32℃F (0 degree) |
Impact Zog xav tau los ntawm Thickness
| Thickness Ntau | Longitudinal Avg. (ft-lbs) | Transverse Avg. (ft-lbs) |
|---|---|---|
| 0.1875" – 2.00" | 25 | 17 |
| 2.001" – 2.80" | 30 | 20 |
| 2.801" – 5.90" | 37 | 25 |
Chemical Composition (tus nqi siab tshaj)
| Element | Max % |
|---|---|
| Cov pa roj carbon (C) | 0.18 |
| Silicon (Si) | 0.50 |
| Manganese (Mn) | 0.90 – 1.60 |
| Phosphorus (P) | 0.035 |
| Sulfur (S) | 0.035 |
| Aluminium (Al) | 0.015 (min) |
| Niobium (Nb) | 0.02 – 0.05 |
| Vanadium (V) | 0.05 – 0.10 |
| Titanium (Ti) | 0.02 |
| Copper (Cu) | 0.35 |
| Chromium (Cr) | 0.20 |
| Nickel (Ni) | 0.40 |
| Molybdenum (hli) | 0.08 |
Muaj Dimensions
ABS AH36 steel phaj muaj nyob rau hauv ntau qhov ntau thiab tsawg kom haum rau ntau yam kev xav tau:
| Thickness Ntau | Dav Ntau | Ntev Ntau |
|---|---|---|
| 0.1875 "- 5.90" (4.76 hli - 150mm) | 72 "- 129.9" (1800mm - 3299mm) | 79 "- 1020" (2000mm - 25910mm) |
Kev cai qhov ntev thiab kev ua haujlwm- suav nrog kev txiav, beveling, tua blasting, thiab pleev xim - muaj nyob rau ntawm kev thov.
Nyem kom tau txais cov ncauj lus qhia ntxaws
Daim ntawv thov|AH36 Steel siv qhov twg?
Kev tsim kho nkoj nkoj
sab nrauv hull plating thiab structural thav duab.
Cov neeg nqa khoom loj thiab cov thawv ntim khoom
lawj qauv thiab longitudinal stiffeners.
Offshore drilling platforms
structural tswv cuab rau mobile units.
Cruise ships thiab ferries
thawj load- bearing Cheebtsam.
Quality Assurance & Certifications
ABS Certification - Koj qhov kev lees paub ntawm kev ua raws cai
Txhua qhov kev xa khoom ntawm ABS AH36 steel phaj suav nrog cov ntaub ntawv qhia txog kev lees paub ntawv pov thawj los ntawmAmerican Bureau of Shipping. Qhov no ua kom:
Tag nrho traceabilitylos ntawm zeb mus rau kev xa khoom.
Txheeb xyuas cov khoom siv kho tshuablos ntawm kev xeem ywj pheej.
Ua raws li ABS Cov Cairau cov khoom siv thiab vuam.
Original Mill Test Certificate (MTC)Tshaj tawm raws li EN 10204 Hom 3.1 lossis 3.2.
vim li cas ho xaiv peb?
Tshuag Muaj:Peb tuav 5, 000+ tons ntawm ABSAH36 nkoj tsim phajnyob rau hauv qhov ntau thiab tsawg (6m, 9m, 12m) npaj txhij rau kev xa tawm tam sim.
Kev cai txiav:Peb muab kev txiav profile, beveling, thiab kev pabcuam kom txuag koj lub sijhawm tsim.
Fast Logistics:Kev xa khoom zoo los ntawm kev tawg ntau lossis ntim rau cov chaw nres nkoj loj thoob ntiaj teb (Rotterdam, Houston, Singapore, Dubai).
Competitive Nqe:Direct mill kev koom tes txhais tau tias tsis muaj cov neeg nruab nrab markups.
Tau txais cov lus hais hauv 24 teev
ib - nres kev daws teeb meem
pab neeg tshaj lij
siab zoo
peb cov neeg koom tes
Peb ntseeg los ntawm
Kev ntsuas tus neeg siv
Mr. Chen Wei
Singapore · Loj Shipbuilding thiab Kho Pab Pawg
Ms. Nguyen Thi Hong
Haiphong · Shipbuilding Group of Vietnam
Rajesh Kumar
Kochi, India · Ship Repair Yard
FAQ
01.ABS sawv cev rau dab tsi?
ABS stands rau lubAmerican Bureau of Shipping- lub zej zog kev faib tawm uas tsim thiab tswj cov qauv rau kev tsim khoom siv nkoj. ABS daim ntawv pov thawj lees paub cov hlau ua tau raws li cov cuab yeej siv kho tshuab thiab cov kev xav tau nruj rau kev siv dej hiav txwv.
02.Dab tsi yog qhov txawv ntawm ABS A / B thiab ABS AH36?
03.Dab tsi yog qhov txawv ntawm AH36, DH36, thiab EH36?
Tag nrho peb qib sib piv cov txiaj ntsig thiab lub zog tensile. Qhov sib txawv tseem ceeb nyob hauv lawvcuam tshuam qhov ntsuas kub:
AW 36: 32℃F (0 degree) - haum rau feem ntau temperate marine ib puag ncig
DH 36: -4 ° F (-20 ° C) - rau thaj chaw txias dua
EH 36: -40℃F (-40 degree) - rau Arctic thiab huab cua tsis tshua muaj kev siv -5-11
Qhov kev xaiv yog nyob ntawm lub nkoj kev ua haujlwm ib puag ncig thiab kev faib tawm hauv zej zog cov cai.
04.Yam khoom xa tuaj twg muaj rau AH36?
AH36 feem ntau muaj nyob rau hauvtswj- dov (CR)mob. Rau cov ntawv thov tshwj xeeb, normalized (N) lossis TMCP cov xwm txheej tuaj yeem muab tau. Qhov xwm txheej cuam tshuam rau cov hlau cov qauv nplej thiab cov khoom siv kho tshuab, nrog rau kev ua kom muaj zog ntxiv rau cov ntu tuab.
